1. Introduction

[1]:

import datetime
from pathlib import Path
import os

[2]:

import matplotlib.pyplot as plt
import pandas as pd
import requests
import seaborn as sns

1.1. Config

We define a base directory path

[3]:

BASE_FILE_DIR = Path("temp")

then we create a string that we can then edit to our liking with the .format() method

[4]:

file_path_crib = 'data/{category}/{year}-{month:02d}/{province}-{day:02d}-{month:02d}-{year}.csv'

We create a list of dictionaries containing dictionaries with keys name and url of each of the dataset to extract

[5]:

categories = [
    {
        "name": "pharmacies",
        "url": "http://datos.salud.gob.ar/dataset/39117f8f-e2bc-4571-a572-15a6ce7ea9e1/resource/19338ea7-a492-4af3-b212-18f8f4af9184/download/establecimientos-farmacias-enero-2021.csv"
    }
]

1.2. Extract

[6]:

farmacias = categories[0]
farmacias

[6]:

{'name': 'pharmacies',
 'url': 'http://datos.salud.gob.ar/dataset/39117f8f-e2bc-4571-a572-15a6ce7ea9e1/resource/19338ea7-a492-4af3-b212-18f8f4af9184/download/establecimientos-farmacias-enero-2021.csv'}

[7]:

r = requests.get(farmacias["url"])
r.encoding = 'utf-8'
r

[7]:

<Response [200]>

create a path string

[8]:

now = datetime.datetime.now()
now
# create a path string
file_path = file_path_crib.format(
    category=farmacias["name"],
    year=now.year,
    month=now.month,
    day=now.day,
    province="Argentina"
)
file_path

[8]:

'data/pharmacies/2022-10/Argentina-16-10-2022.csv'

[9]:

farmacias_path = BASE_FILE_DIR / file_path
farmacias_path

[9]:

PosixPath('temp/data/pharmacies/2022-10/Argentina-16-10-2022.csv')

[10]:

farmacias_path.parent.mkdir(parents=True, exist_ok=True)

extract all pharmacies

[11]:

with open(farmacias_path, "w") as f:
    f.write(r.text)

1.3. Transform

[12]:

df = pd.read_csv(farmacias_path)
df.head()

[12]:

	establecimiento_id	establecimiento_nombre	localidad_id	localidad_nombre	provincia_id	provincia_nombre	departamento_id	departamento_nombre	cod_loc	cod_ent	origen_financiamiento	tipologia_id	tipologia_nombre	tipologia	cp	domicilio	sitio_web
0	70260072329721	PUJOL	26007020000	PUERTO MADRYN	26	CHUBUT	7	BIEDMA	20	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	9120	LOS MAITENES 1538	NaN
1	70100352324743	SALUDFARMA	10035020000	BELEN	10	CATAMARCA	35	BELÉN	20	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	4750	Mitre 14	NaN
2	70064412318286	MARSICO	6441030015	LA PLATA	6	BUENOS AIRES	441	LA PLATA	30	15.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	1900	Avenida 7 445	NaN
3	70340492347884	PERALTA HNOS	34049010000	CLORINDA	34	FORMOSA	49	PILCOMAYO	10	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	3610	Avenida San Martin 470	NaN
4	70140142334991	VALENTINO	14014010000	CORDOBA	14	CÓRDOBA	14	CAPITAL	10	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	5000	Catamarca 1047	NaN

[13]:

df.isnull().sum()

[13]:

establecimiento_id            0
establecimiento_nombre        0
localidad_id                  0
localidad_nombre              0
provincia_id                  0
provincia_nombre              0
departamento_id               0
departamento_nombre           0
cod_loc                       0
cod_ent                     384
origen_financiamiento         0
tipologia_id                  0
tipologia_nombre              0
tipologia                     0
cp                            0
domicilio                     0
sitio_web                 13633
dtype: int64

[14]:

df.columns

[14]:

Index(['establecimiento_id', 'establecimiento_nombre', 'localidad_id',
       'localidad_nombre', 'provincia_id', 'provincia_nombre',
       'departamento_id', 'departamento_nombre', 'cod_loc', 'cod_ent ',
       'origen_financiamiento', 'tipologia_id', 'tipologia_nombre',
       'tipologia', 'cp', 'domicilio', 'sitio_web'],
      dtype='object')

Renombrar las columnas

[15]:

renamed_cols = {
    'establecimiento_id': 'id',
    'establecimiento_nombre': 'name',
    'domicilio':'adress',
    'localidad_id': 'id_location',
    'localidad_nombre': 'location',
    'provincia_id': 'id_province',
    'provincia_nombre': 'province',
    'departamento_id': 'id_department',
    'departamento_nombre': 'department',
    'cod_loc': 'cod_location',
    'tipologia_id': 'id_tipology',
    'tipologia_nombre': 'tipology',
    'cp': 'postal_code',
    'sitio_web': 'webpage',
}

[16]:

df = df.rename(columns = renamed_cols)

[17]:

df.columns
df.set_index("id")

[17]:

	name	id_location	location	id_province	province	id_department	department	cod_location	cod_ent	origen_financiamiento	id_tipology	tipology	tipologia	postal_code	adress	webpage
id
70260072329721	PUJOL	26007020000	PUERTO MADRYN	26	CHUBUT	7	BIEDMA	20	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	9120	LOS MAITENES 1538	NaN
70100352324743	SALUDFARMA	10035020000	BELEN	10	CATAMARCA	35	BELÉN	20	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	4750	Mitre 14	NaN
70064412318286	MARSICO	6441030015	LA PLATA	6	BUENOS AIRES	441	LA PLATA	30	15.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	1900	Avenida 7 445	NaN
70340492347884	PERALTA HNOS	34049010000	CLORINDA	34	FORMOSA	49	PILCOMAYO	10	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	3610	Avenida San Martin 470	NaN
70140142334991	VALENTINO	14014010000	CORDOBA	14	CÓRDOBA	14	CAPITAL	10	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	5000	Catamarca 1047	NaN
...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...	...
70460212355713	FARMACOST	46021020000	ANILLACO	46	LA RIOJA	21	CASTRO BARROS	20	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	5301	Coronel Nicolas Barros s/n Barrio Virgen del F...	NaN
70421472354613	FARMACIA MUSSO	42147030000	TRENEL	42	LA PAMPA	147	TRENEL	30	0.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	6369	9 DE JULIO 545	NaN
70940142195567	FARMACIA- HOSPITAL REGIONAL USHUAIA	94014020000	USHUAIA	94	TIERRA DEL FUEGO	14	USHUAIA	20	0.0	Provincial	70	FARMACIA	Farmacia en Establecimiento de Salud	9410	12 de octubre 65	NaN
70420702154608	FARMACIA INSTITUCIONAL E.A. MANUEL FREIRE	42070030000	GUATRACHE	42	LA PAMPA	70	GUATRACHÉ	30	0.0	Provincial	70	FARMACIA	Farmacia en Establecimiento de Salud	6309	Primera Junta Nº 158	NaN
70064272320083	CABRERA ESCOBAR	6427010008	RAFAEL CASTILLO	6	BUENOS AIRES	427	LA MATANZA	10	8.0	Privado	70	FARMACIA	Farmacia ambulatoria comercial	1755	INT.FEDERICO P.RUSSO 1426	NaN

13677 rows × 16 columns

[18]:

cols = [
    'id',
    'name',
    'id_province',
    'province',
    'id_department',
    'department',
    'id_location',
    'location',
    'postal_code',
    'adress',
    'webpage',
]

[19]:

df = df[cols]
df

[19]:

	id	name	id_province	province	id_department	department	id_location	location	postal_code	adress	webpage
0	70260072329721	PUJOL	26	CHUBUT	7	BIEDMA	26007020000	PUERTO MADRYN	9120	LOS MAITENES 1538	NaN
1	70100352324743	SALUDFARMA	10	CATAMARCA	35	BELÉN	10035020000	BELEN	4750	Mitre 14	NaN
2	70064412318286	MARSICO	6	BUENOS AIRES	441	LA PLATA	6441030015	LA PLATA	1900	Avenida 7 445	NaN
3	70340492347884	PERALTA HNOS	34	FORMOSA	49	PILCOMAYO	34049010000	CLORINDA	3610	Avenida San Martin 470	NaN
4	70140142334991	VALENTINO	14	CÓRDOBA	14	CAPITAL	14014010000	CORDOBA	5000	Catamarca 1047	NaN
...	...	...	...	...	...	...	...	...	...	...	...
13672	70460212355713	FARMACOST	46	LA RIOJA	21	CASTRO BARROS	46021020000	ANILLACO	5301	Coronel Nicolas Barros s/n Barrio Virgen del F...	NaN
13673	70421472354613	FARMACIA MUSSO	42	LA PAMPA	147	TRENEL	42147030000	TRENEL	6369	9 DE JULIO 545	NaN
13674	70940142195567	FARMACIA- HOSPITAL REGIONAL USHUAIA	94	TIERRA DEL FUEGO	14	USHUAIA	94014020000	USHUAIA	9410	12 de octubre 65	NaN
13675	70420702154608	FARMACIA INSTITUCIONAL E.A. MANUEL FREIRE	42	LA PAMPA	70	GUATRACHÉ	42070030000	GUATRACHE	6309	Primera Junta Nº 158	NaN
13676	70064272320083	CABRERA ESCOBAR	6	BUENOS AIRES	427	LA MATANZA	6427010008	RAFAEL CASTILLO	1755	INT.FEDERICO P.RUSSO 1426	NaN

13677 rows × 11 columns

1.4. Load

[20]:

# create a path string
file_path = file_path_crib.format(
    category=farmacias["name"],
    year=now.year,
    month=now.month,
    day=now.day,
    province="ETL-Argentina"
)
farmacias_path = BASE_FILE_DIR / file_path
df.to_csv(farmacias_path)

1.5. Data Analisys Example

1.5.1. Total Pharmacies by Provinces

[21]:

provinces = df['province'].value_counts().keys()
total_farmacias = df['province'].value_counts().values

[21]:

Index(['BUENOS AIRES', 'SANTA FE', 'CABA', 'TUCUMÁN', 'MISIONES', 'CÓRDOBA',
       'ENTRE RÍOS', 'CHACO', 'SALTA', 'CORRIENTES', 'RÍO NEGRO', 'LA PAMPA',
       'SANTIAGO DEL ESTERO', 'SAN LUIS', 'SAN JUAN', 'NEUQUÉN', 'CHUBUT',
       'JUJUY', 'CATAMARCA', 'FORMOSA', 'LA RIOJA', 'SANTA CRUZ',
       'TIERRA DEL FUEGO', 'MENDOZA'],
      dtype='object')

[22]:

df_provincias = pd.DataFrame(
    {
        "Provinces": provinces,
        "Total_Pharms": total_farmacias,
        "Total_Pharms_in_percent": total_farmacias/ df.shape[0]
    }
)
df_provincias

[22]:

	Provinces	Total_Pharms	Total_Pharms_in_percent
0	BUENOS AIRES	5053	0.369452
1	SANTA FE	1778	0.129999
2	CABA	1024	0.074870
3	TUCUMÁN	611	0.044674
4	MISIONES	594	0.043431
5	CÓRDOBA	566	0.041383
6	ENTRE RÍOS	489	0.035753
7	CHACO	426	0.031147
8	SALTA	337	0.024640
9	CORRIENTES	303	0.022154
10	RÍO NEGRO	273	0.019961
11	LA PAMPA	262	0.019156
12	SANTIAGO DEL ESTERO	251	0.018352
13	SAN LUIS	238	0.017401
14	SAN JUAN	228	0.016670
15	NEUQUÉN	192	0.014038
16	CHUBUT	185	0.013526
17	JUJUY	184	0.013453
18	CATAMARCA	180	0.013161
19	FORMOSA	162	0.011845
20	LA RIOJA	155	0.011333
21	SANTA CRUZ	93	0.006800
22	TIERRA DEL FUEGO	62	0.004533
23	MENDOZA	31	0.002267

[23]:

# barplot of all the features
fig = plt.figure(figsize = (12,4))
sns.barplot(x = 'Provinces', y = 'Total_Pharms', data = df_provincias)
plt.xticks(rotation=90)
plt.grid()
plt.title("Total Pharmacies by Province")
plt.show()

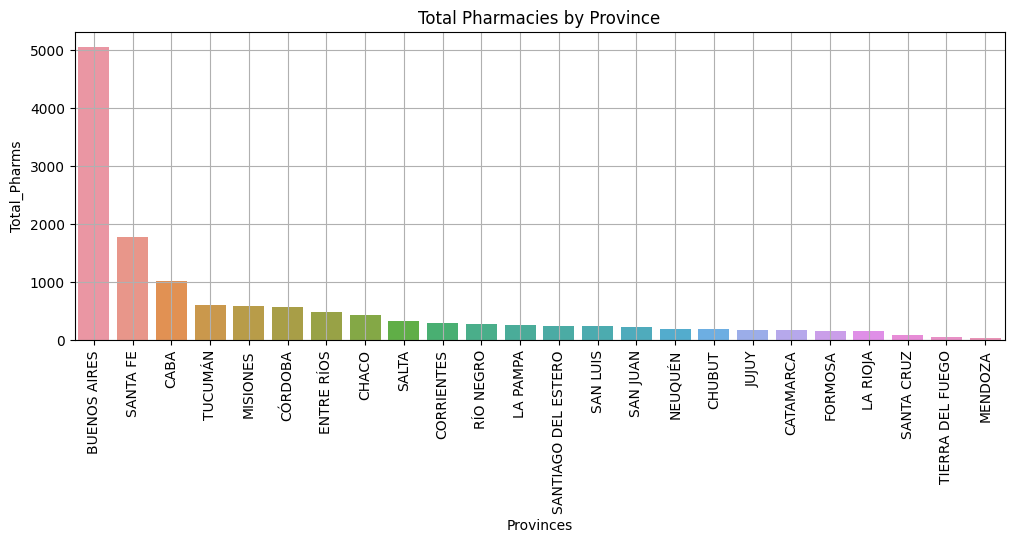

../_images/notes_data_exploratory_en_33_0.png

[24]:

fig = plt.figure(figsize = (12,4))
sns.barplot(x = 'Provinces', y = 'Total_Pharms_in_percent', data = df_provincias)
plt.xticks(rotation=90)
plt.grid()
plt.title("Total Pharms by Province in percent")
plt.show()

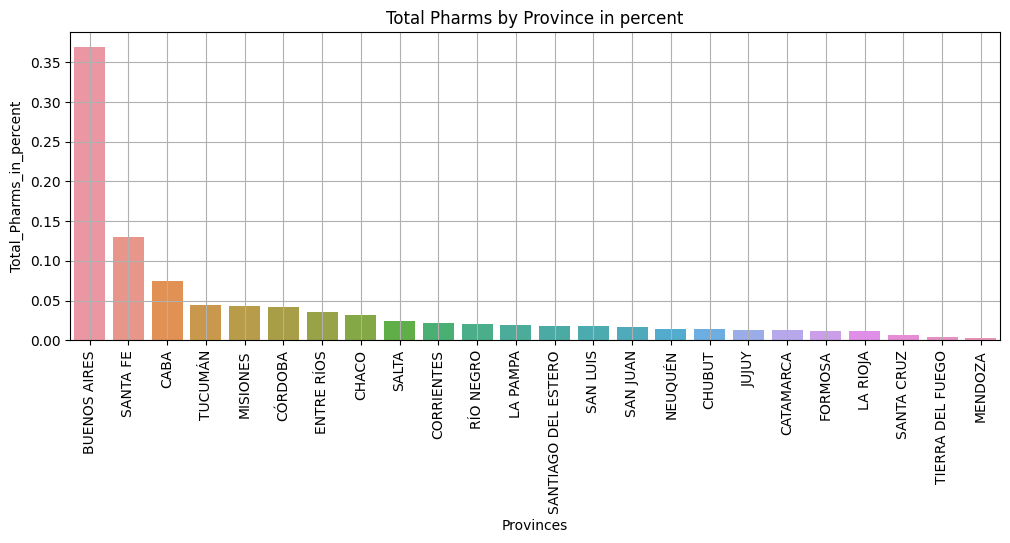

../_images/notes_data_exploratory_en_34_0.png

1.5.2. Filter Data by Province

[25]:

# Get pharms by province
def pharms_by_province(province):
    df_province =  df[df["province"]==province]
    return df_province

[26]:

# Get all pharms by department in some province
def pharms_by_department(df_province):
    department = df_province['department'].value_counts()
    df_pharms_by_department = pd.DataFrame(
        {
            "Departments": department.keys(),
            "Total_Pharms_by_Department": department.values,
            "Total_Pharms_in_percent": department.values / department.values.sum()
        }
    )
    return df_pharms_by_department

[27]:

data_allprovinces = {index : pharms_by_province(index) for index in provinces}
data_alldepartment = {index : pharms_by_department(data_allprovinces[index]) for index in provinces}

[28]:

province_name_by_index = "CÓRDOBA"
df_province = data_allprovinces[province_name_by_index]# data for province "CÓRDOBA"
df_province.head()

[28]:

	id	name	id_province	province	id_department	department	id_location	location	postal_code	adress	webpage
4	70140142334991	VALENTINO	14	CÓRDOBA	14	CAPITAL	14014010000	CORDOBA	5000	Catamarca 1047	NaN
129	70140142333750	HP FARMA V	14	CÓRDOBA	14	CAPITAL	14014010000	CORDOBA	5000	Elías Yofre 1050	NaN
135	70140422333755	FARMAVIDA IX	14	CÓRDOBA	42	GENERAL SAN MARTÍN	14042170000	VILLA MARIA	5900	Sarmiento 1966	NaN
177	70140212333758	GRAMIGNA	14	CÓRDOBA	21	COLÓN	14021200000	MENDIOLAZA	5107	Avenida Martín Tissera 2997	NaN
178	70140142333759	GENERAL PAZ NUEVOCENTRO	14	CÓRDOBA	14	CAPITAL	14014010000	CORDOBA	5000	Avenida Duarte Quirós 1400	NaN

[29]:

df_department=data_alldepartment[province_name_by_index]
df_department

[29]:

	Departments	Total_Pharms_by_Department	Total_Pharms_in_percent
0	CAPITAL	295	0.521201
1	SAN JUSTO	38	0.067138
2	COLÓN	31	0.054770
3	PUNILLA	30	0.053004
4	GENERAL SAN MARTÍN	28	0.049470
5	RÍO CUARTO	25	0.044170
6	RÍO SEGUNDO	20	0.035336
7	SANTA MARÍA	16	0.028269
8	MARCOS JUÁREZ	11	0.019435
9	TERCERO ARRIBA	9	0.015901
10	CRUZ DEL EJE	9	0.015901
11	CALAMUCHITA	8	0.014134
12	UNIÓN	8	0.014134
13	JUÁREZ CELMAN	7	0.012367
14	RÍO PRIMERO	5	0.008834
15	SAN JAVIER	5	0.008834
16	ISCHILÍN	5	0.008834
17	PRESIDENTE ROQUE SÁENZ PEÑA	5	0.008834
18	SAN ALBERTO	3	0.005300
19	SOBREMONTE	2	0.003534
20	RÍO SECO	2	0.003534
21	GENERAL ROCA	1	0.001767
22	MINAS	1	0.001767
23	TOTORAL	1	0.001767
24	TULUMBA	1	0.001767

[30]:

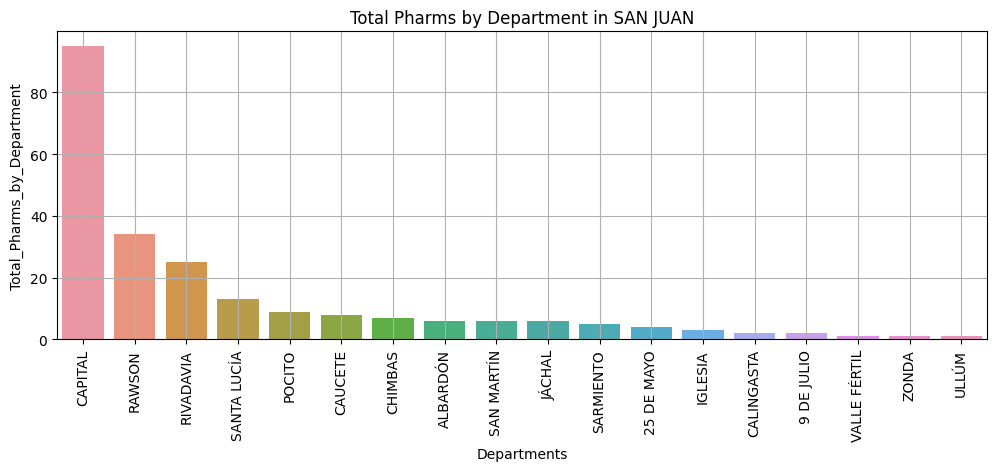

plt.rcParams["font.size"] = "5.0"
for province_name_by_index in provinces:
    df_department = data_alldepartment[province_name_by_index]
    fig = plt.figure(figsize = (12,4))
    sns.barplot(x = 'Departments', y = 'Total_Pharms_by_Department', data = df_department)
    plt.xticks(rotation = 90)
    plt.rcParams["font.size"] = "10.0"
    plt.grid()
    plt.title(f"Total Pharms by Department in {province_name_by_index}")
    plt.show()

../_images/notes_data_exploratory_en_41_0.png

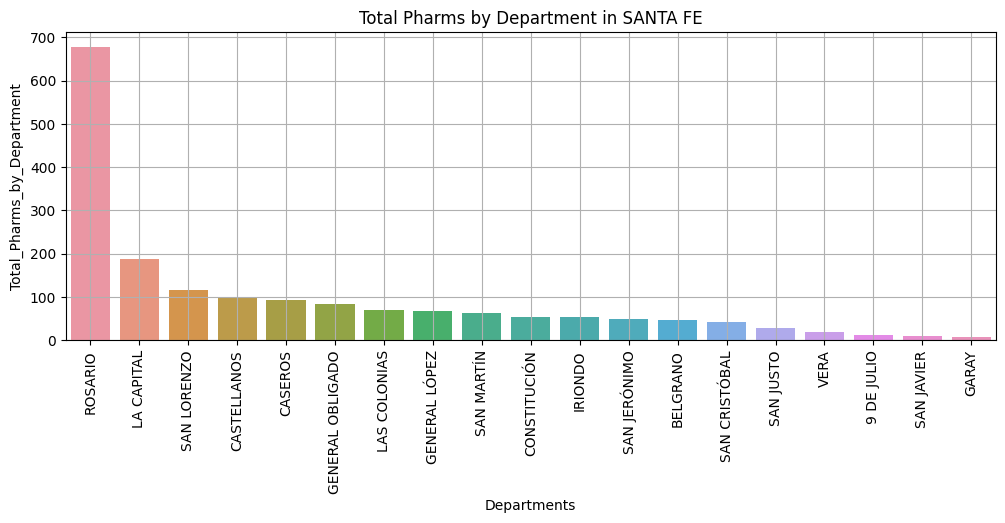

../_images/notes_data_exploratory_en_41_1.png

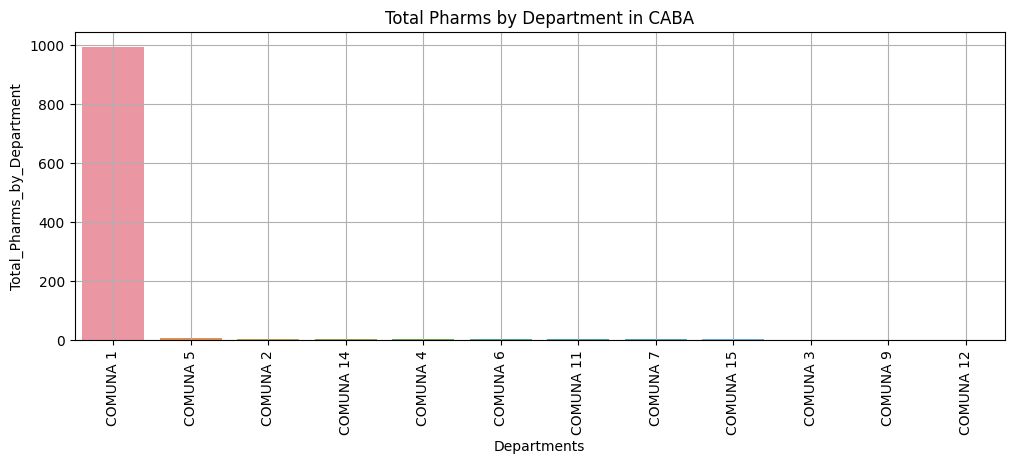

../_images/notes_data_exploratory_en_41_2.png

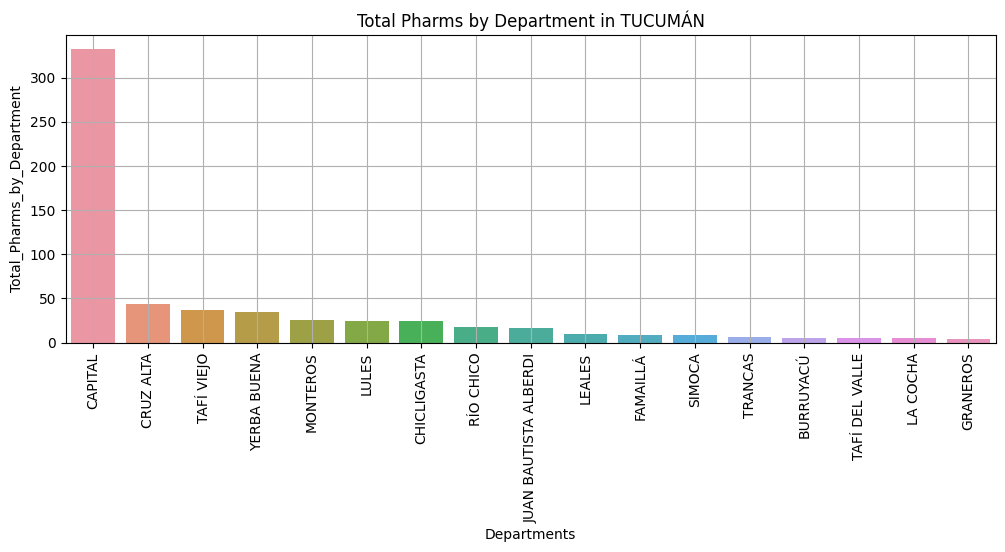

../_images/notes_data_exploratory_en_41_3.png

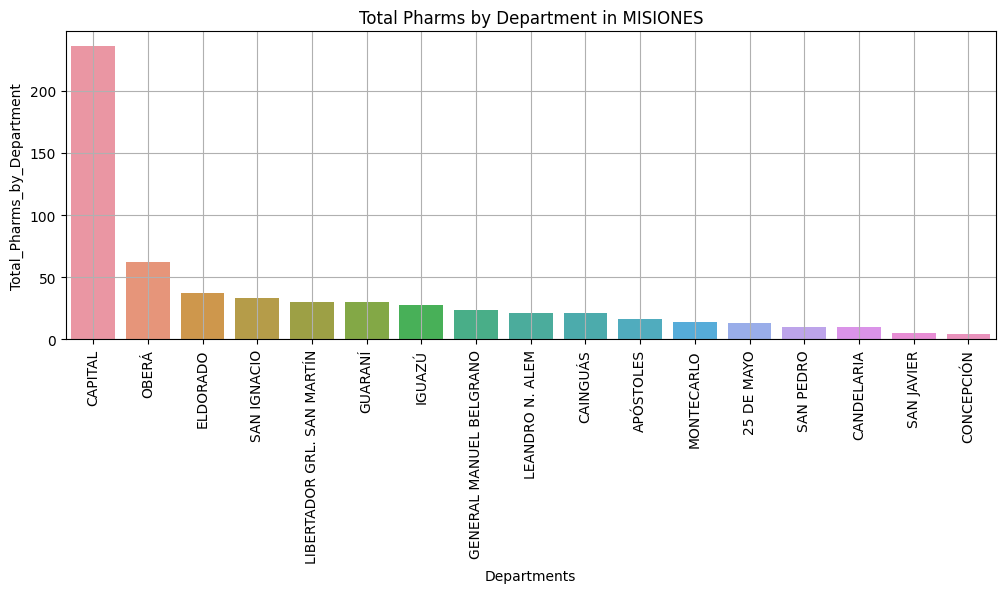

../_images/notes_data_exploratory_en_41_4.png

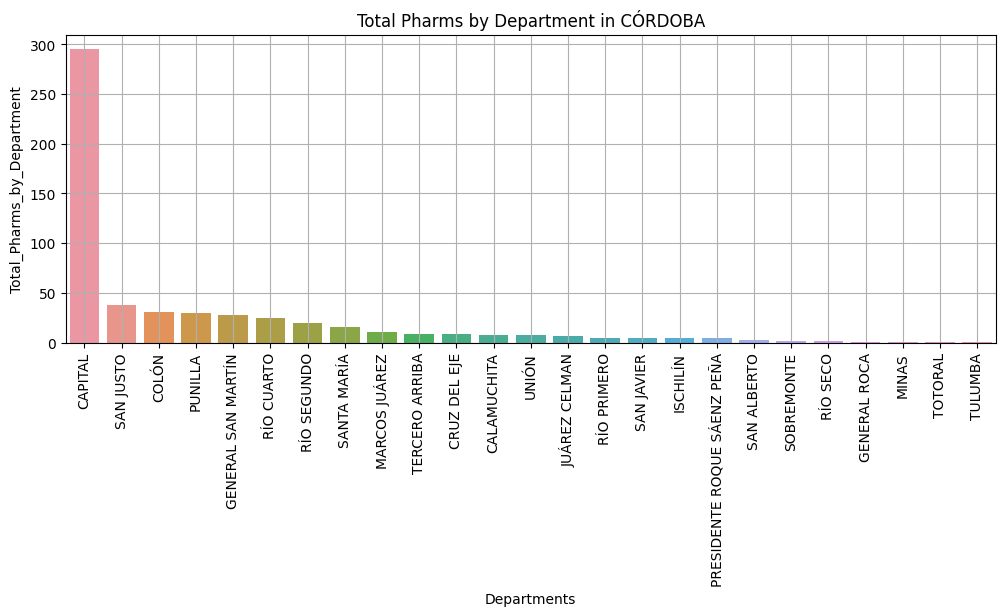

../_images/notes_data_exploratory_en_41_5.png

../_images/notes_data_exploratory_en_41_6.png

../_images/notes_data_exploratory_en_41_7.png

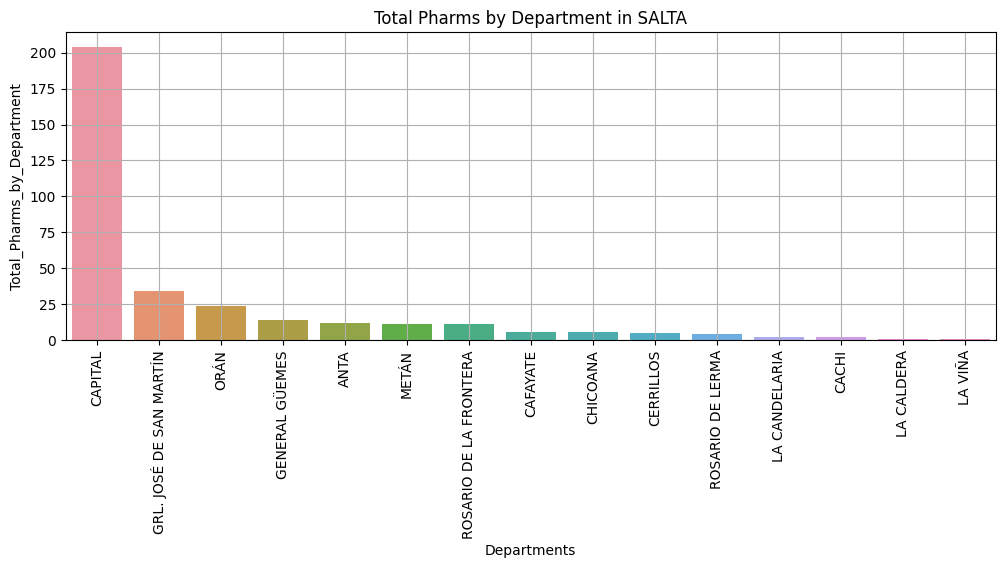

../_images/notes_data_exploratory_en_41_8.png

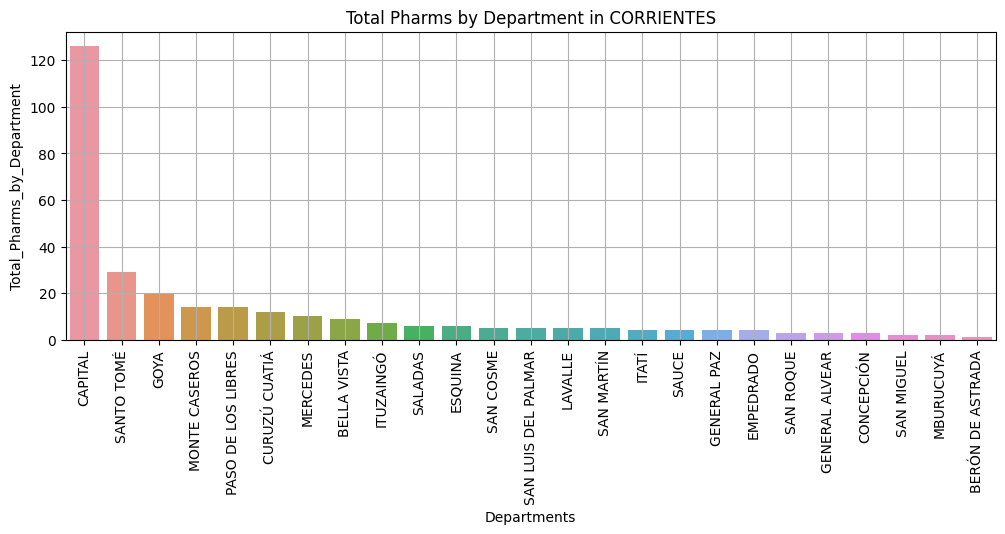

../_images/notes_data_exploratory_en_41_9.png

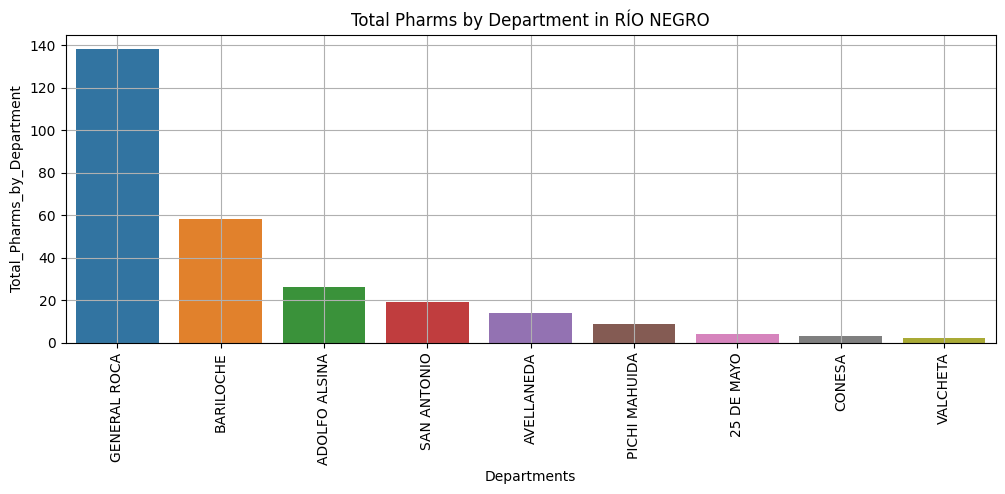

../_images/notes_data_exploratory_en_41_10.png

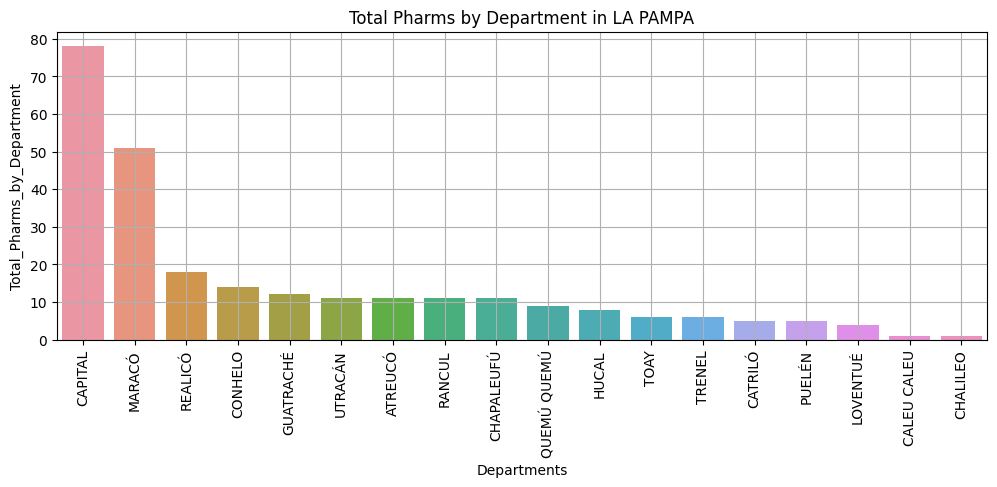

../_images/notes_data_exploratory_en_41_11.png

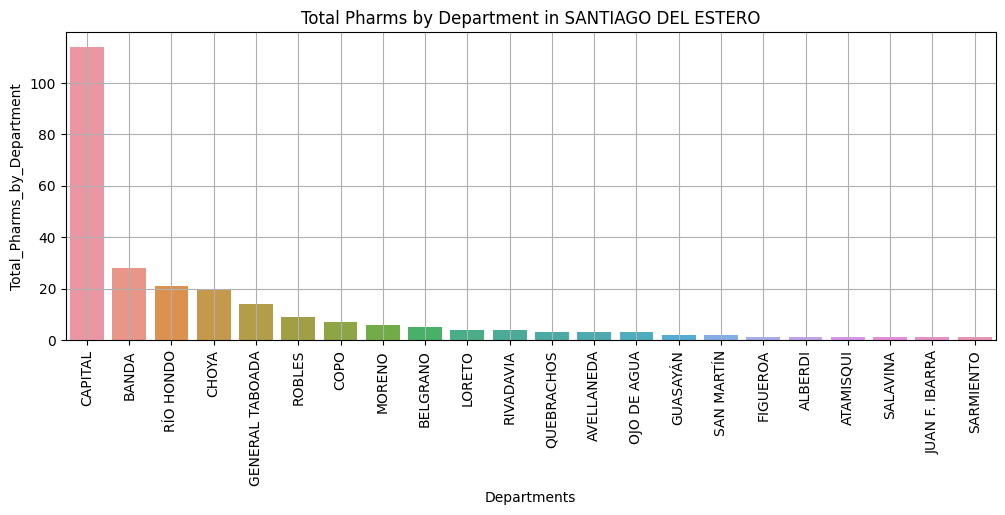

../_images/notes_data_exploratory_en_41_12.png

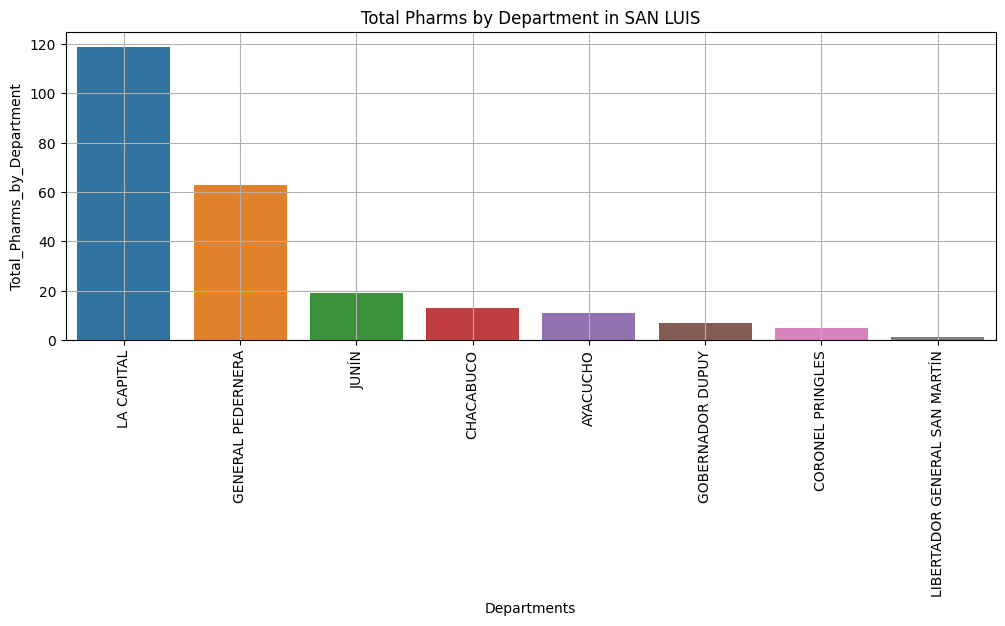

../_images/notes_data_exploratory_en_41_13.png

../_images/notes_data_exploratory_en_41_14.png

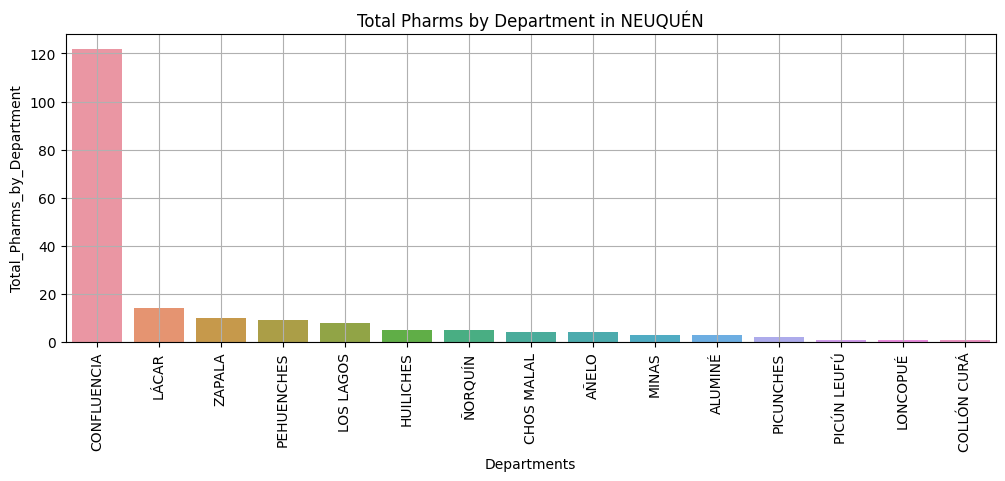

../_images/notes_data_exploratory_en_41_15.png

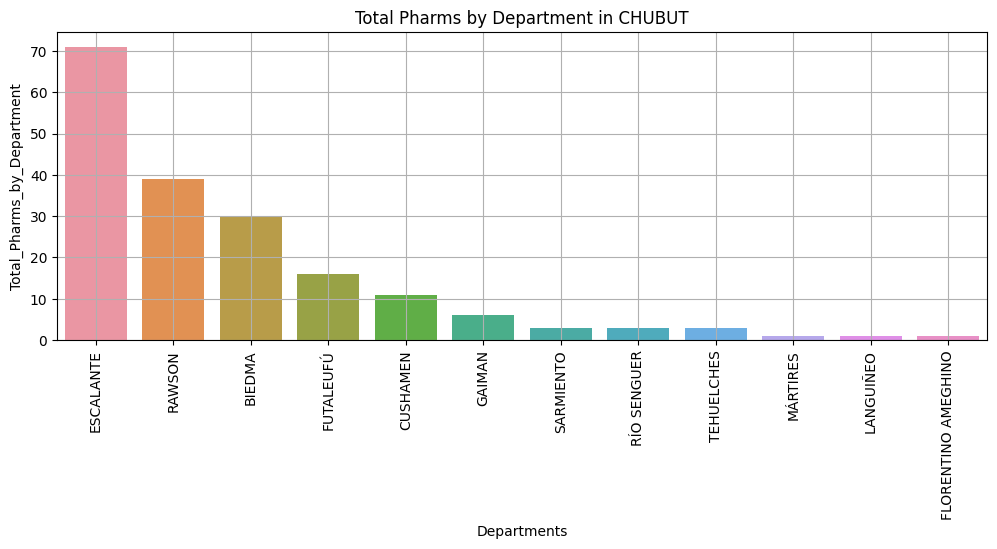

../_images/notes_data_exploratory_en_41_16.png

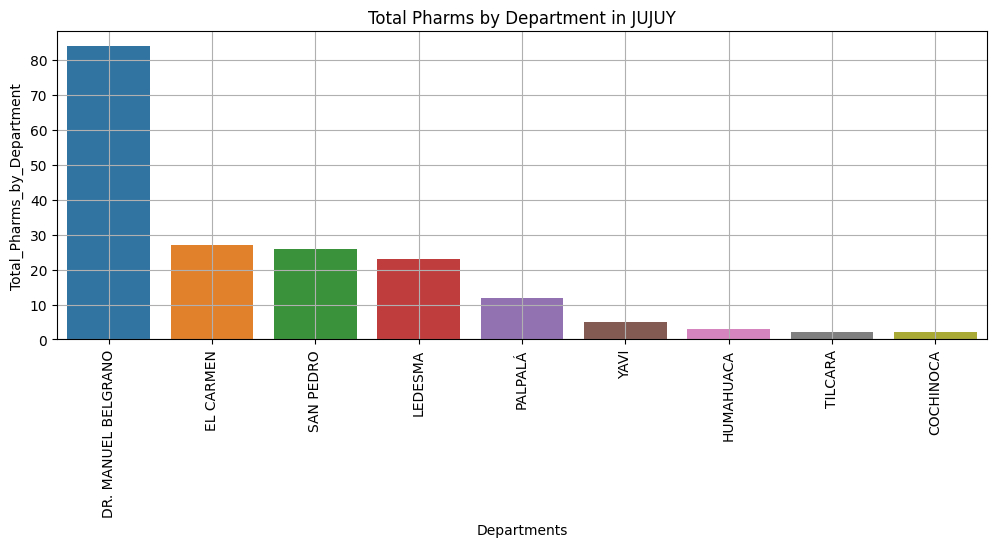

../_images/notes_data_exploratory_en_41_17.png

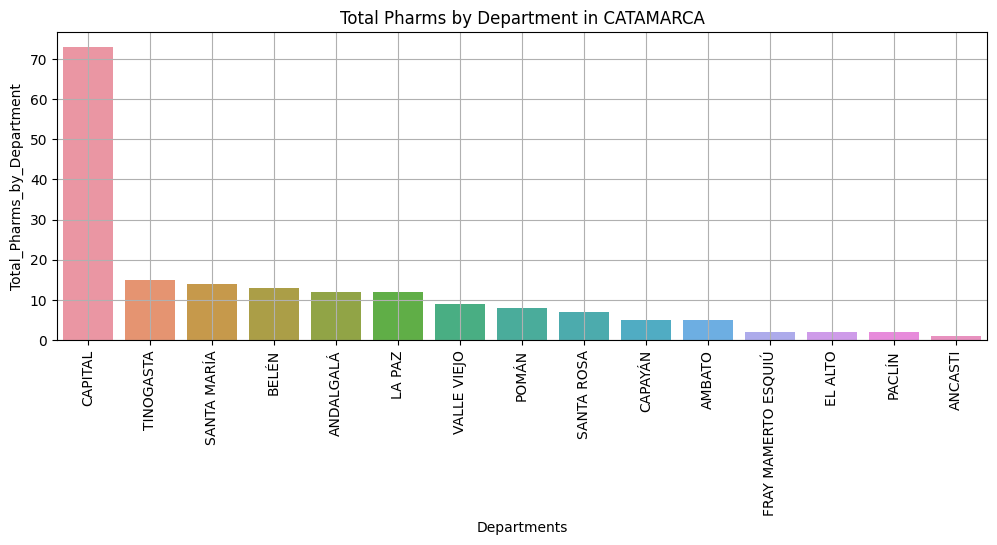

../_images/notes_data_exploratory_en_41_18.png

../_images/notes_data_exploratory_en_41_19.png

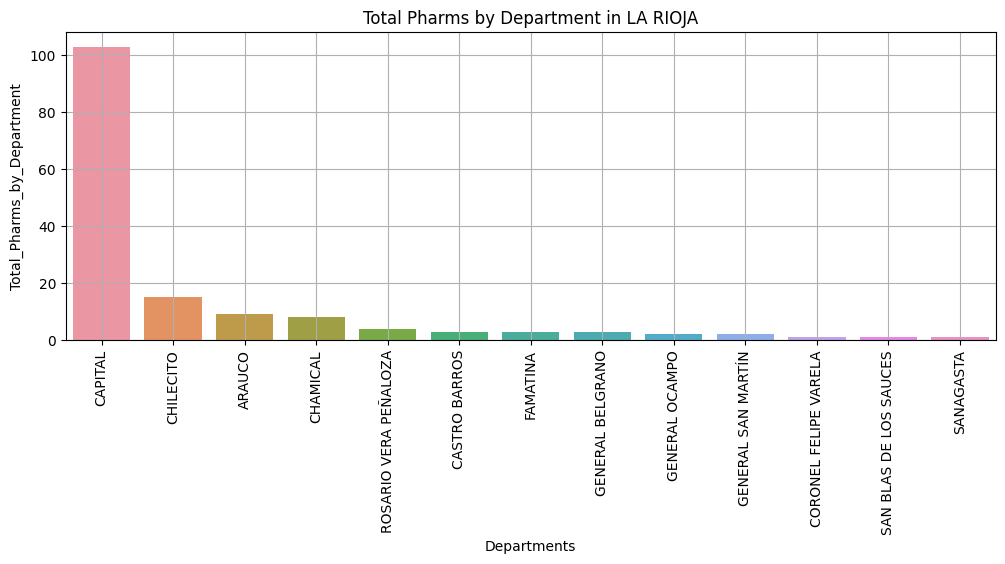

../_images/notes_data_exploratory_en_41_20.png

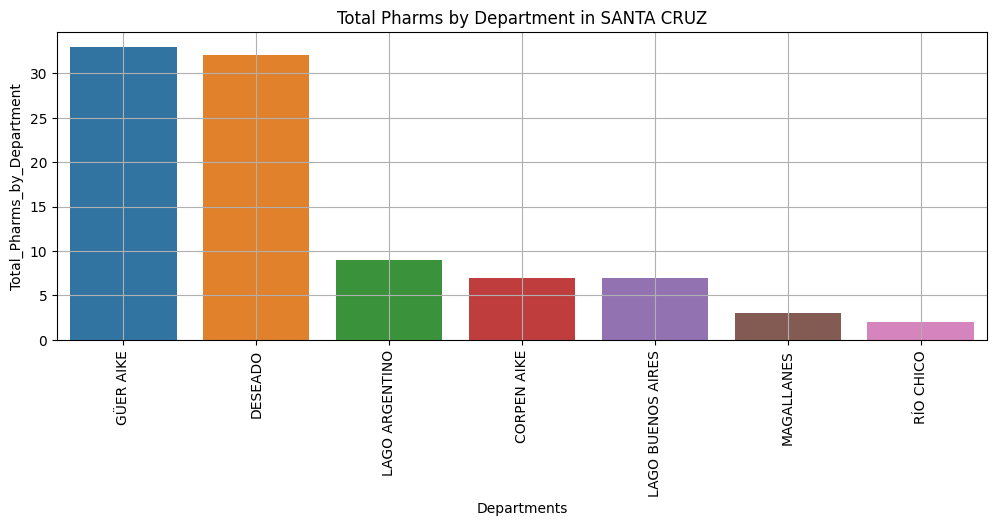

../_images/notes_data_exploratory_en_41_21.png

../_images/notes_data_exploratory_en_41_22.png

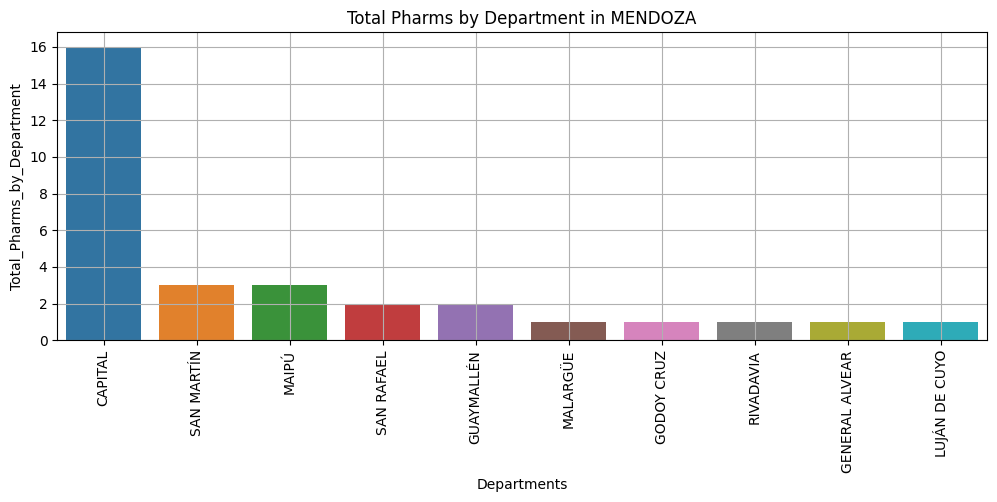

../_images/notes_data_exploratory_en_41_23.png

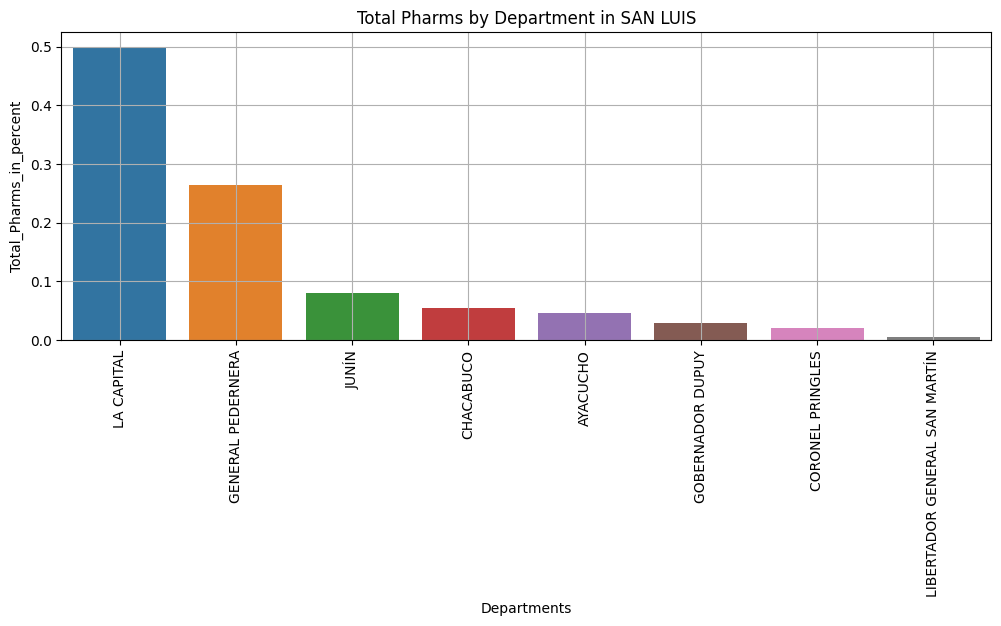

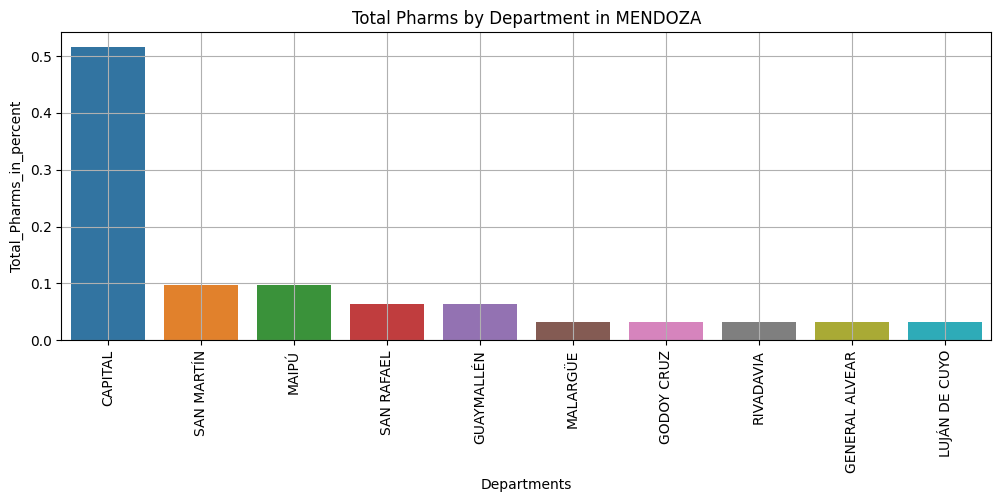

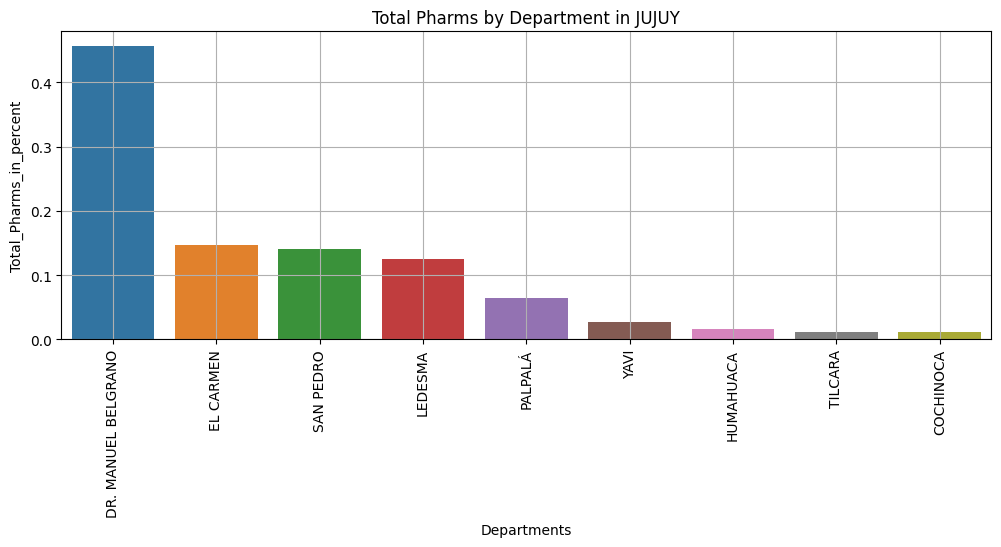

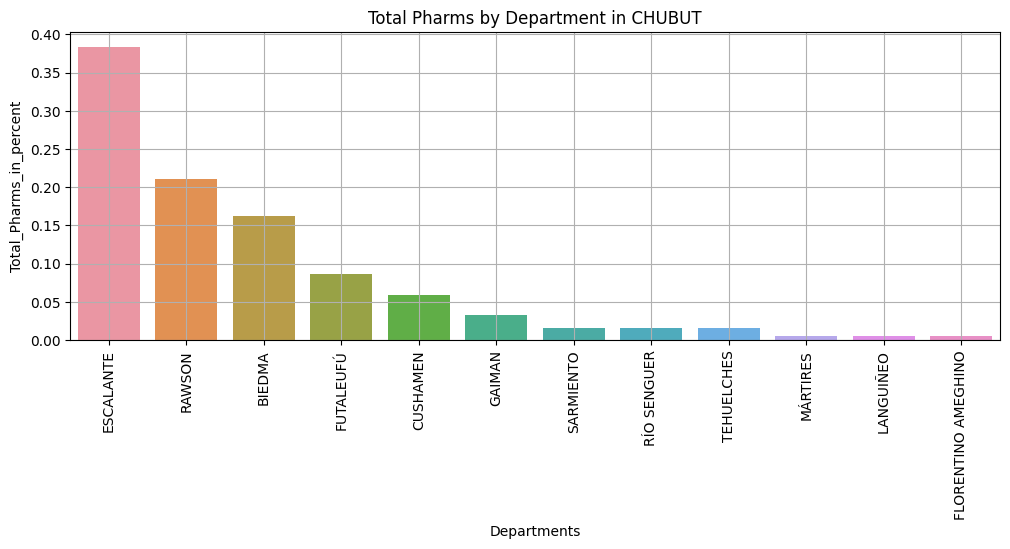

[31]:

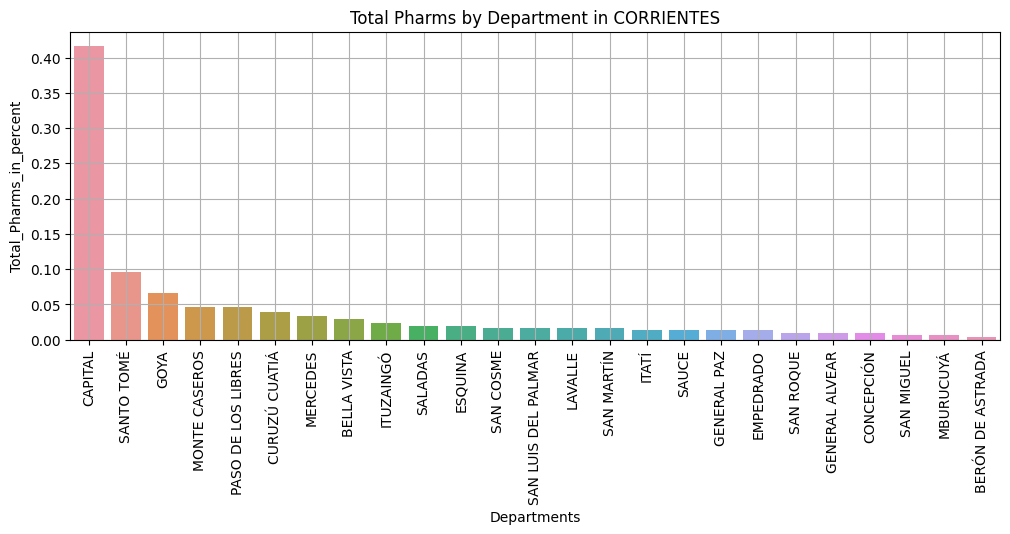

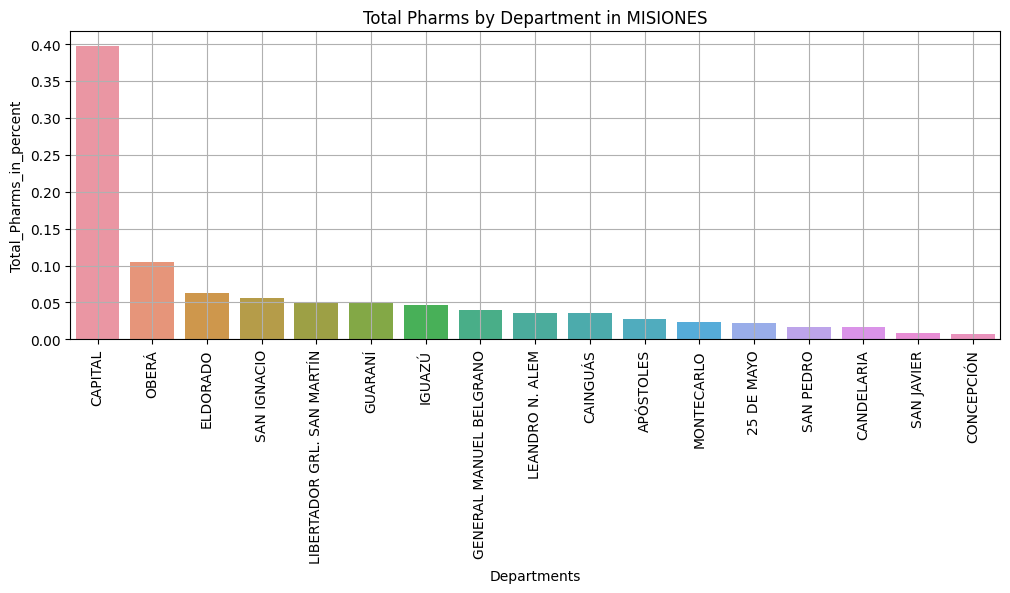

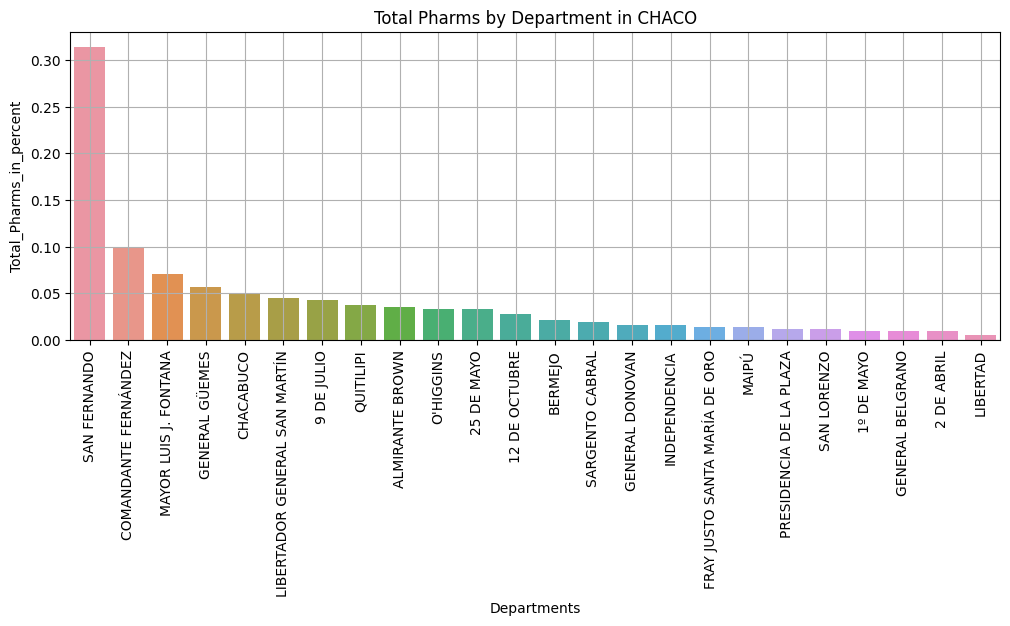

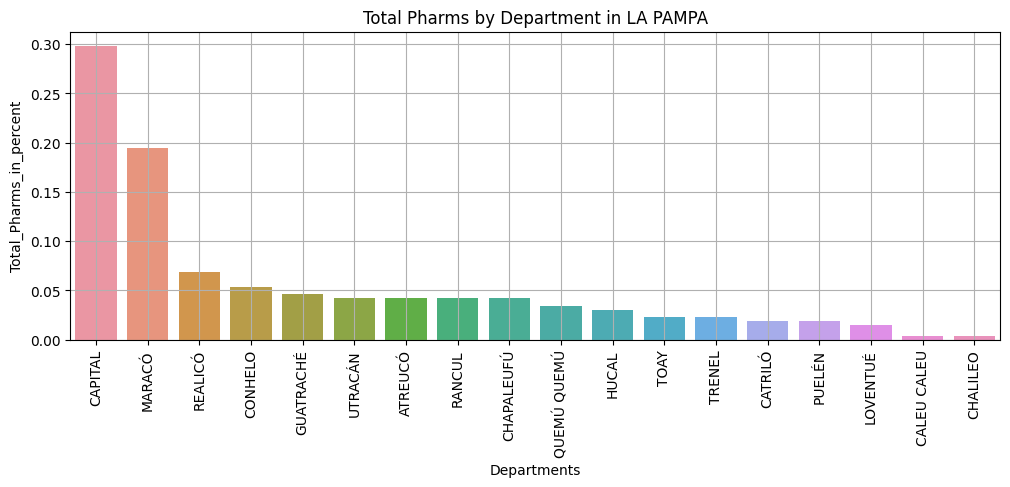

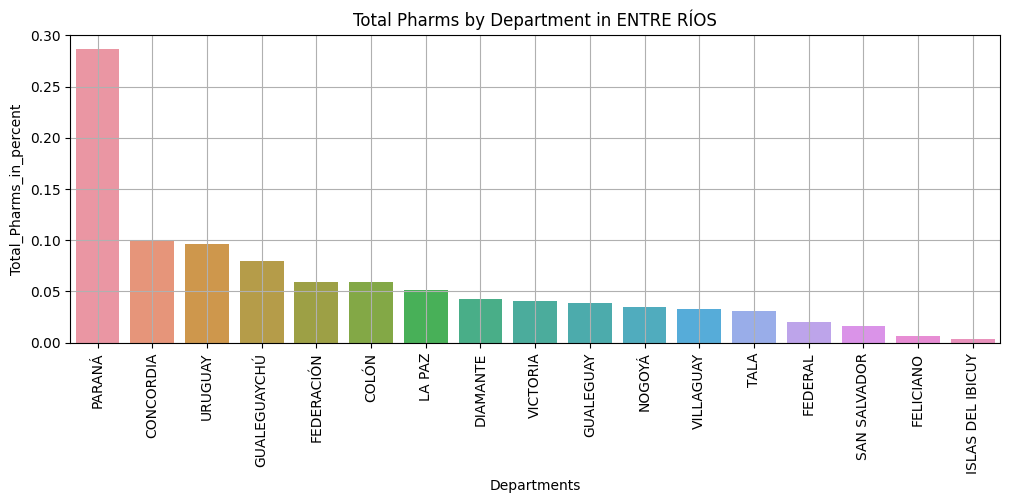

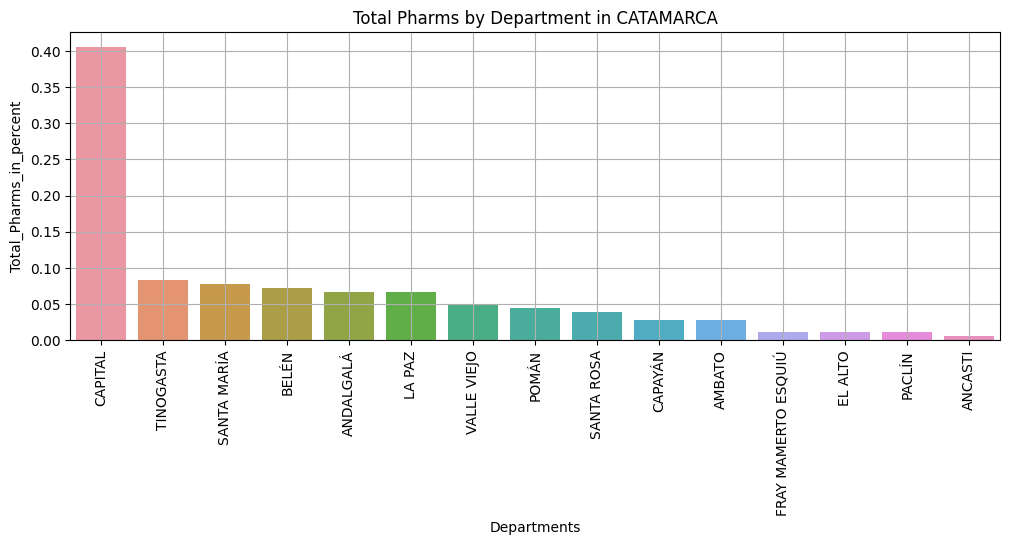

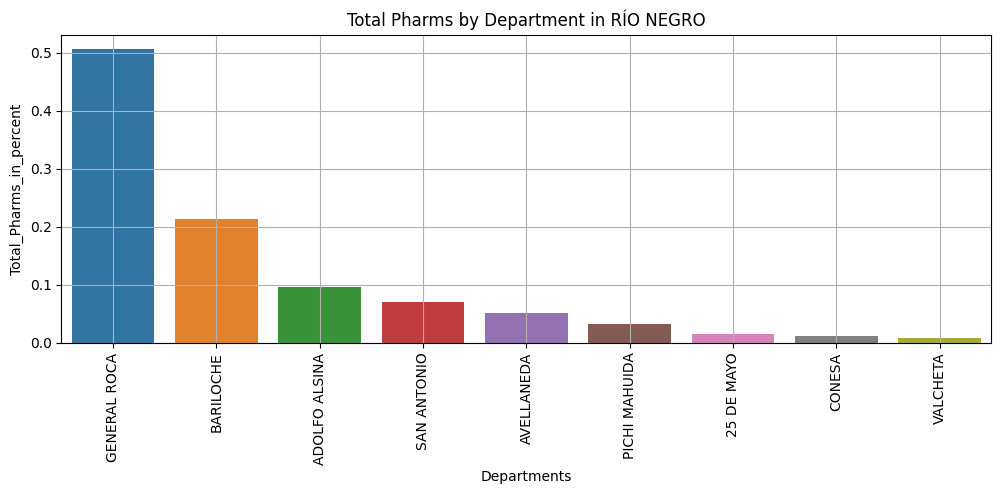

# barplot of all the features
plt.rcParams["font.size"] = "5.0"
for province_name_by_index in provinces:
    df_department = data_alldepartment[province_name_by_index]
    fig = plt.figure(figsize = (12,4))
    sns.barplot(x = 'Departments', y = 'Total_Pharms_in_percent', data = df_department)
    plt.xticks(rotation = 90)
    plt.grid()
    plt.rcParams["font.size"] = "10.0"

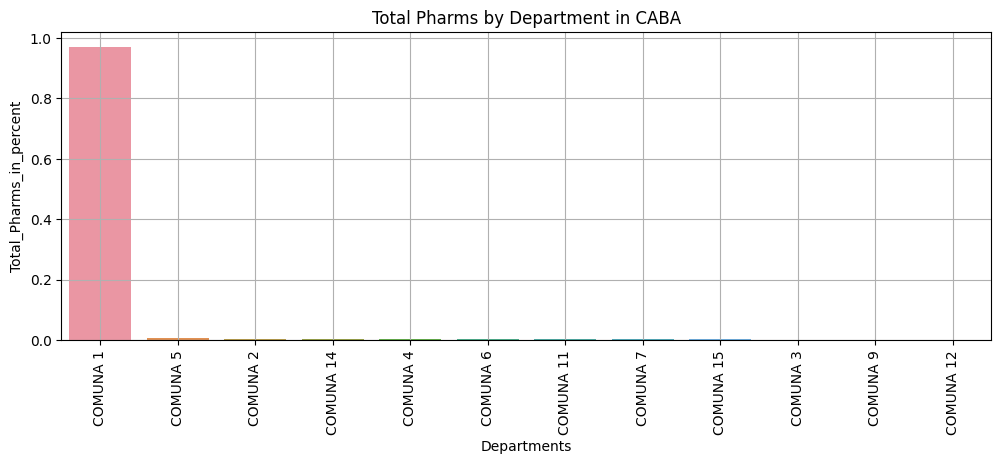

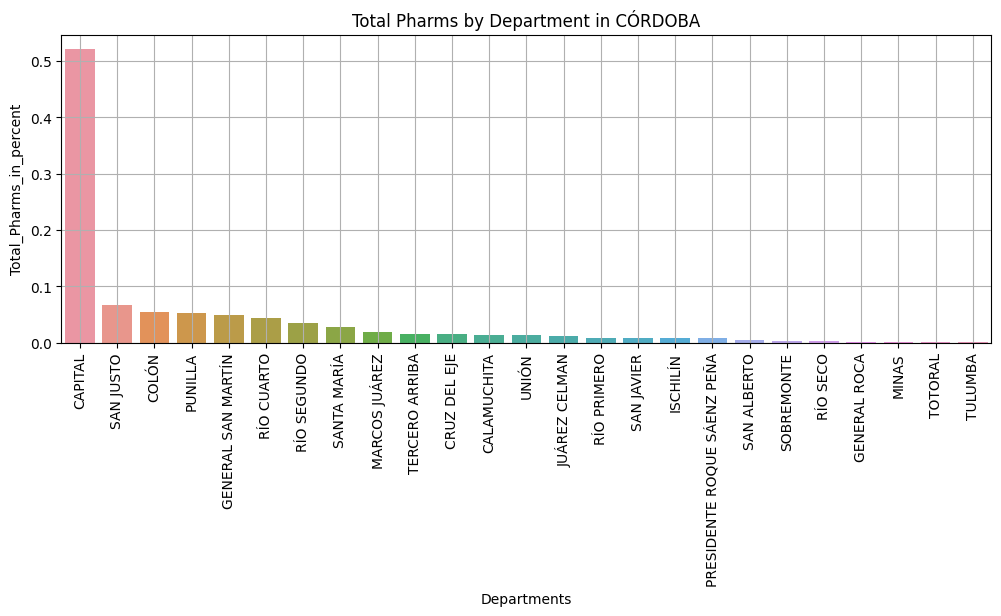

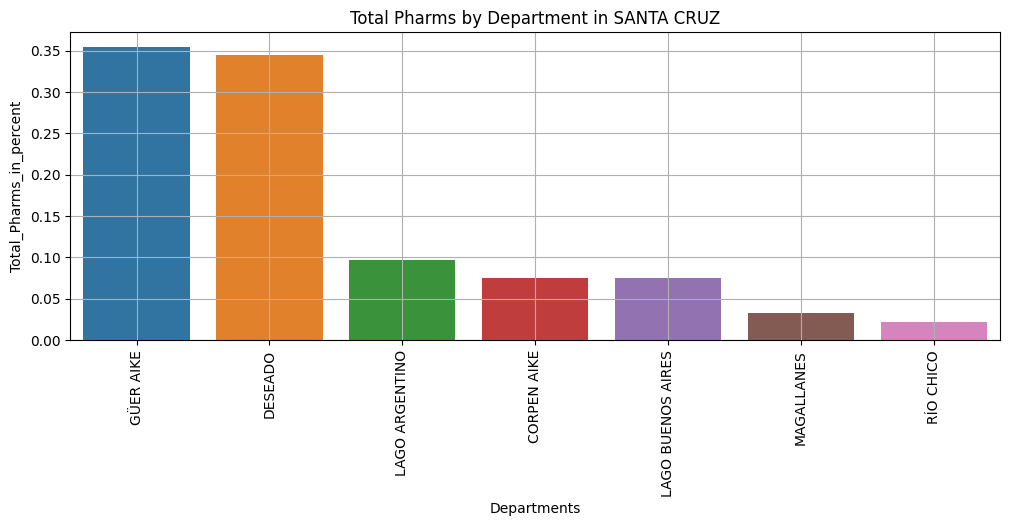

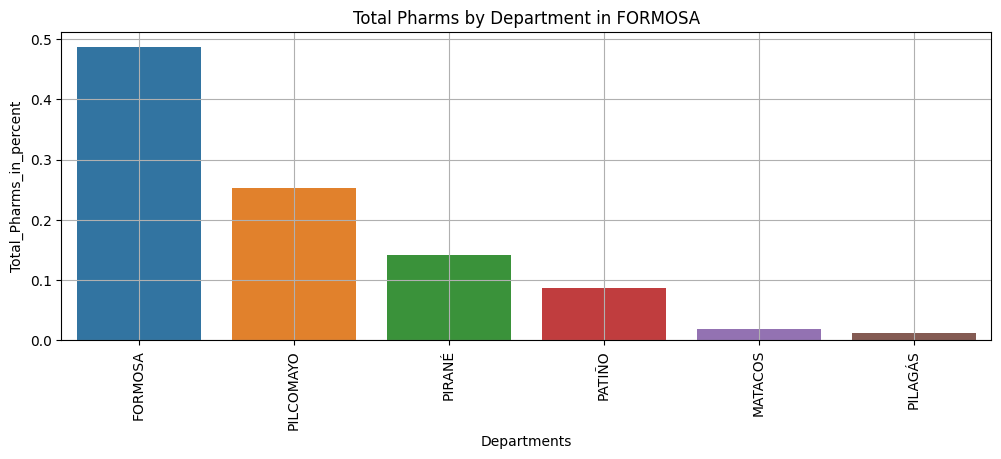

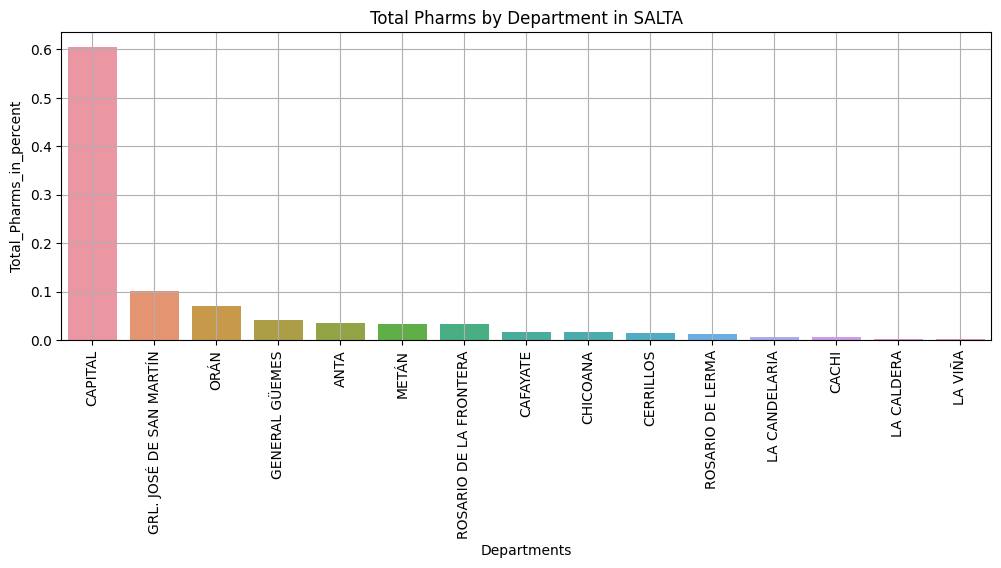

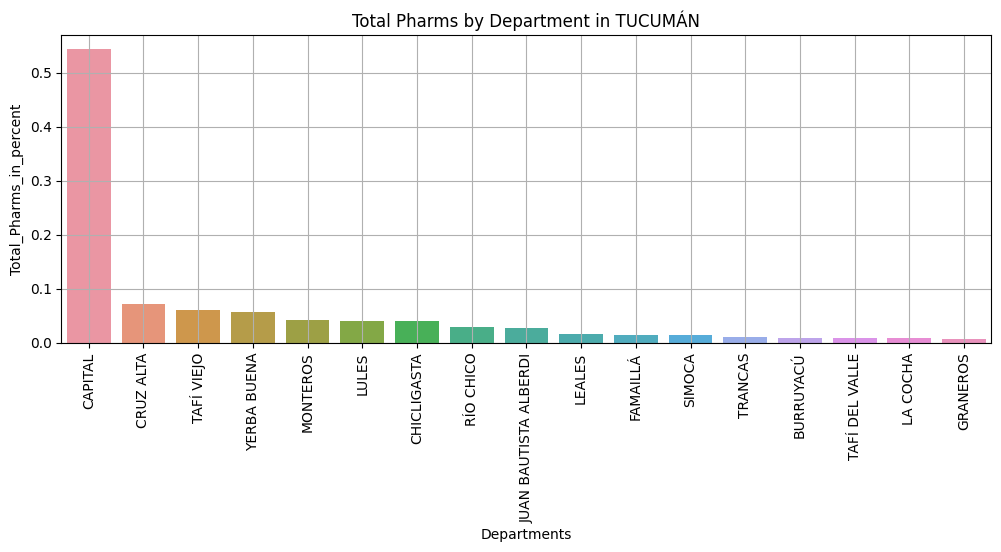

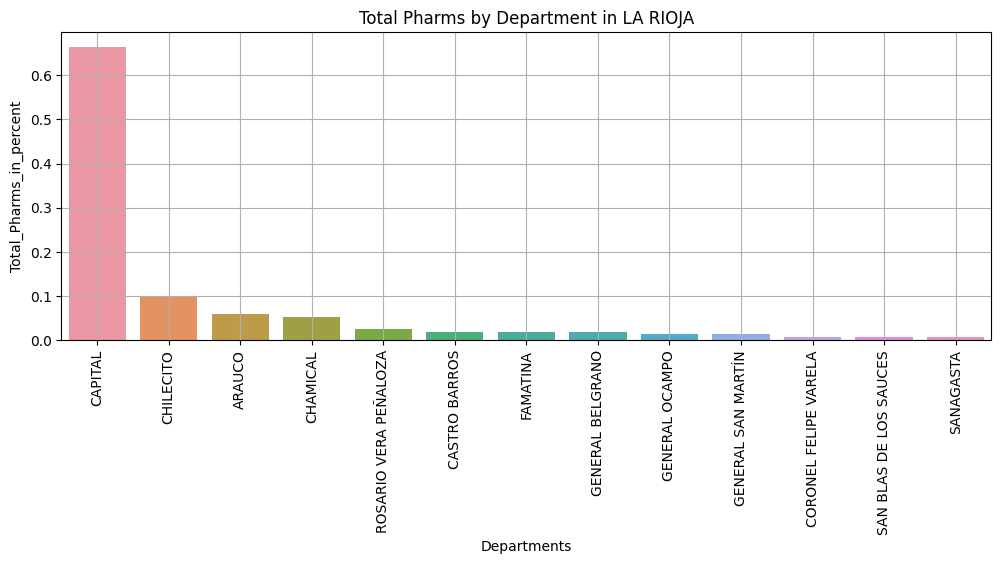

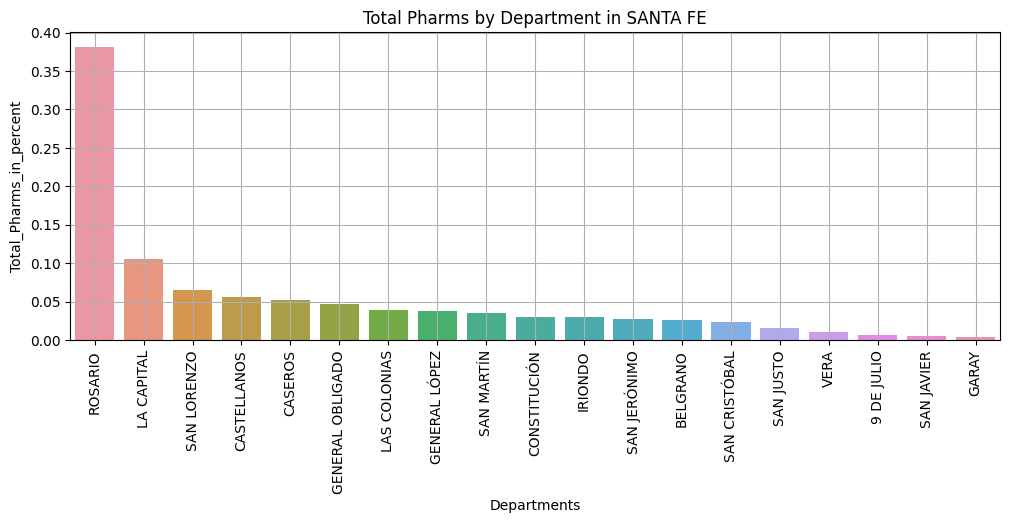

    plt.title(f"Total Pharms by Department in {province_name_by_index}")
    plt.show()

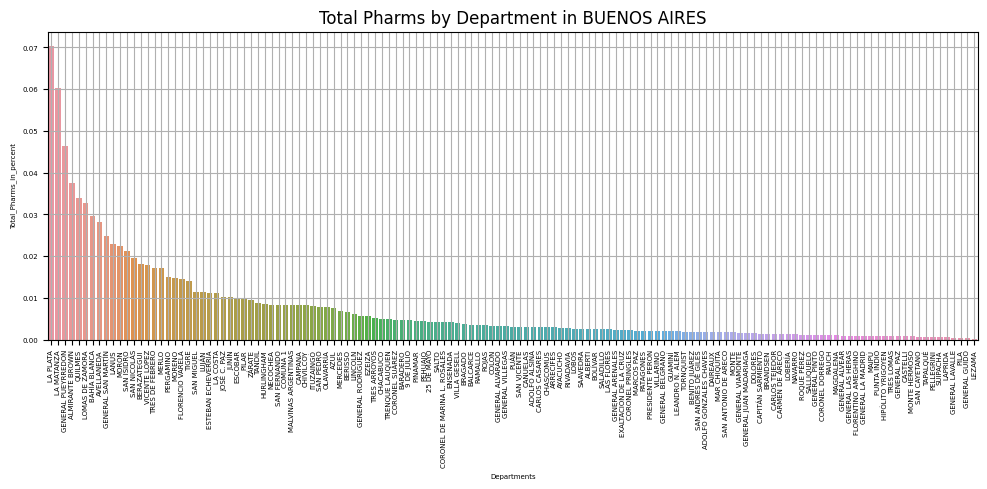

../_images/notes_data_exploratory_en_42_0.png

../_images/notes_data_exploratory_en_42_1.png

../_images/notes_data_exploratory_en_42_2.png

../_images/notes_data_exploratory_en_42_3.png

../_images/notes_data_exploratory_en_42_4.png

../_images/notes_data_exploratory_en_42_5.png

../_images/notes_data_exploratory_en_42_6.png

../_images/notes_data_exploratory_en_42_7.png

../_images/notes_data_exploratory_en_42_8.png

../_images/notes_data_exploratory_en_42_9.png

../_images/notes_data_exploratory_en_42_10.png

../_images/notes_data_exploratory_en_42_11.png

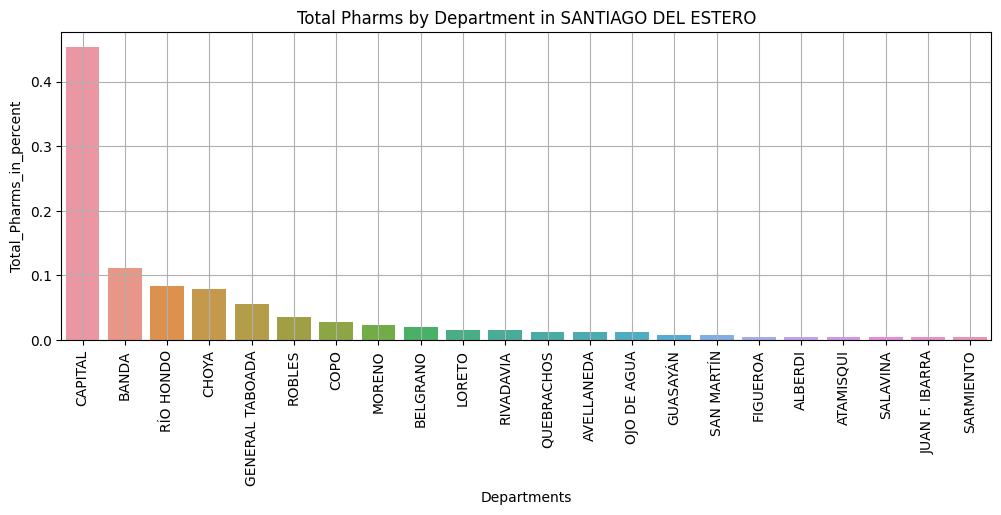

../_images/notes_data_exploratory_en_42_12.png

../_images/notes_data_exploratory_en_42_13.png

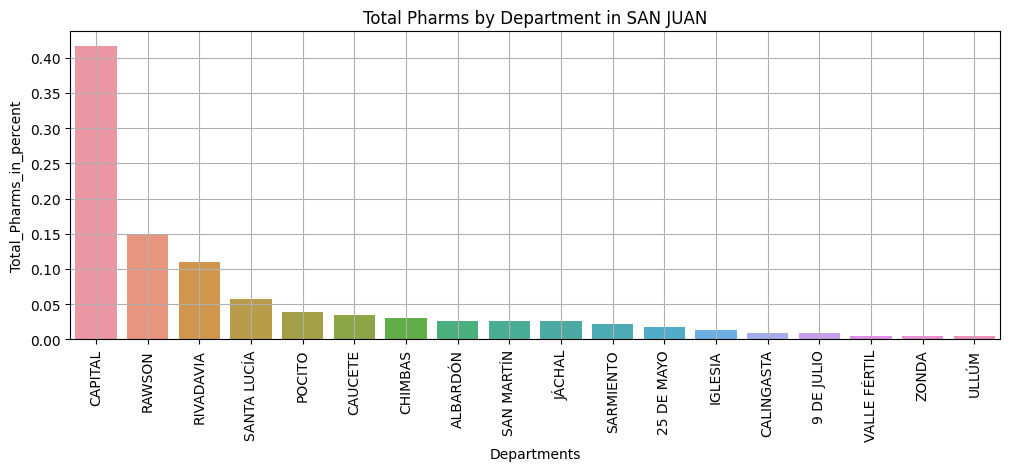

../_images/notes_data_exploratory_en_42_14.png

../_images/notes_data_exploratory_en_42_15.png

../_images/notes_data_exploratory_en_42_16.png

../_images/notes_data_exploratory_en_42_17.png

../_images/notes_data_exploratory_en_42_18.png

../_images/notes_data_exploratory_en_42_19.png

../_images/notes_data_exploratory_en_42_20.png

../_images/notes_data_exploratory_en_42_21.png

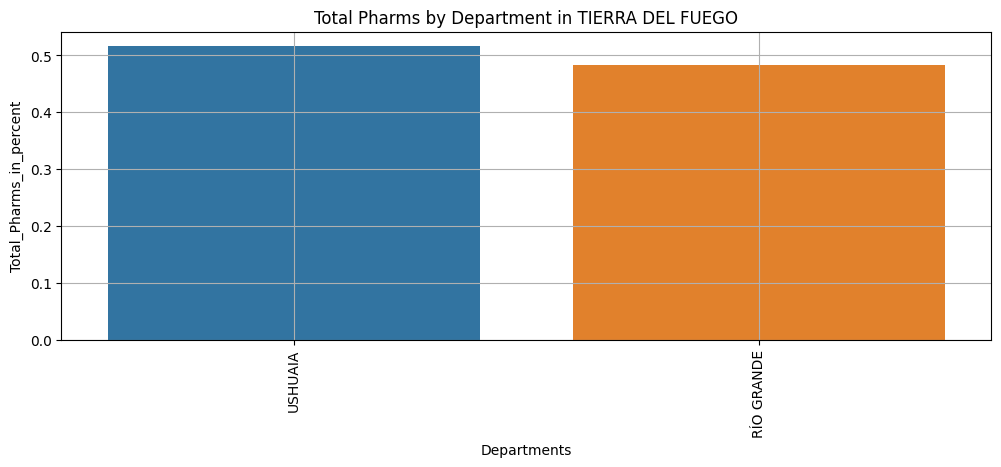

../_images/notes_data_exploratory_en_42_22.png

../_images/notes_data_exploratory_en_42_23.png

Derive Additional Features

[32]:

for province_name_by_index in provinces:
    df_province = data_allprovinces[province_name_by_index]# data for province "CÓRDOBA"
    file_path = file_path_crib.format(
        category = farmacias["name"],
        year = now.year,
        month = now.month,
        day = now.day,
        province = f"pharmacies_{province_name_by_index.lower().replace(' ', '_')}",
    )
    province_path = BASE_FILE_DIR / file_path
    # save data frame in CSV file
    df_province.to_csv(province_path)
